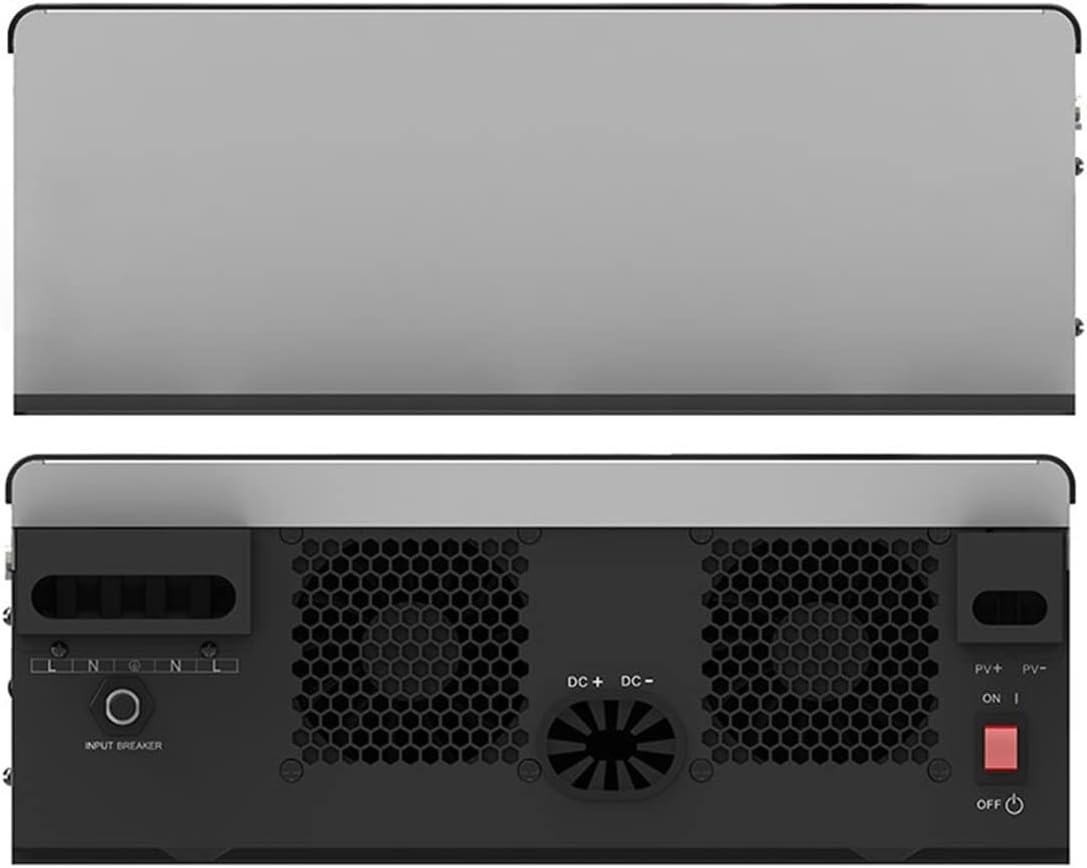

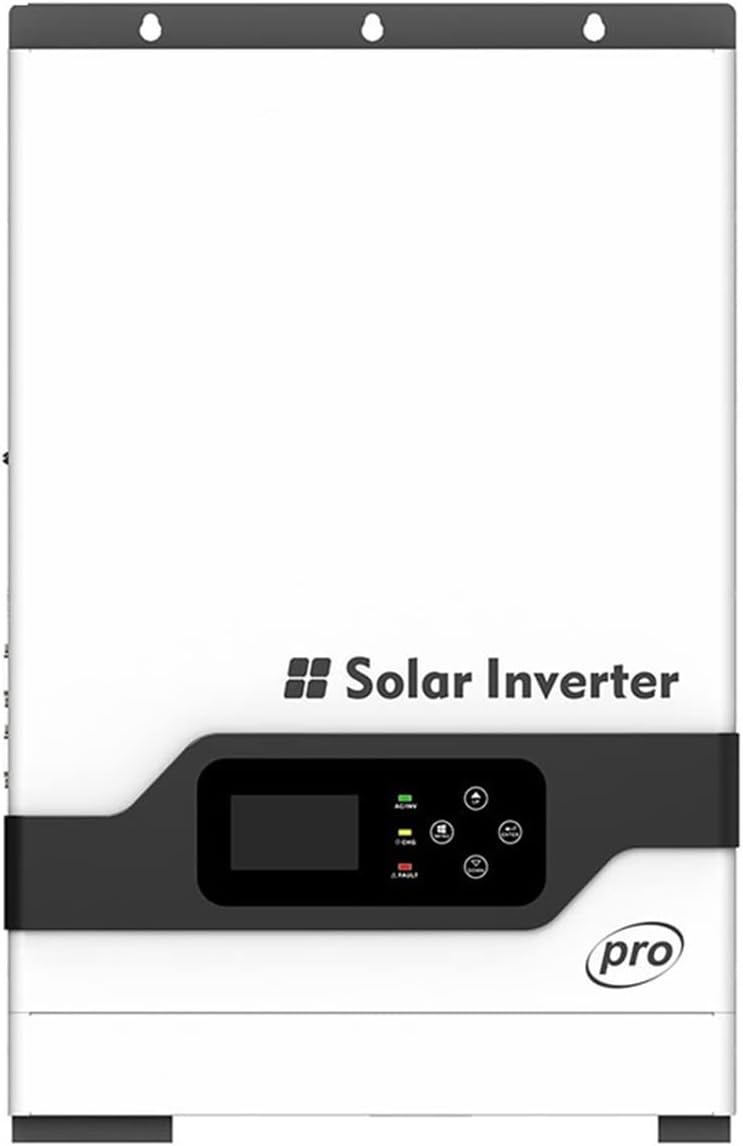

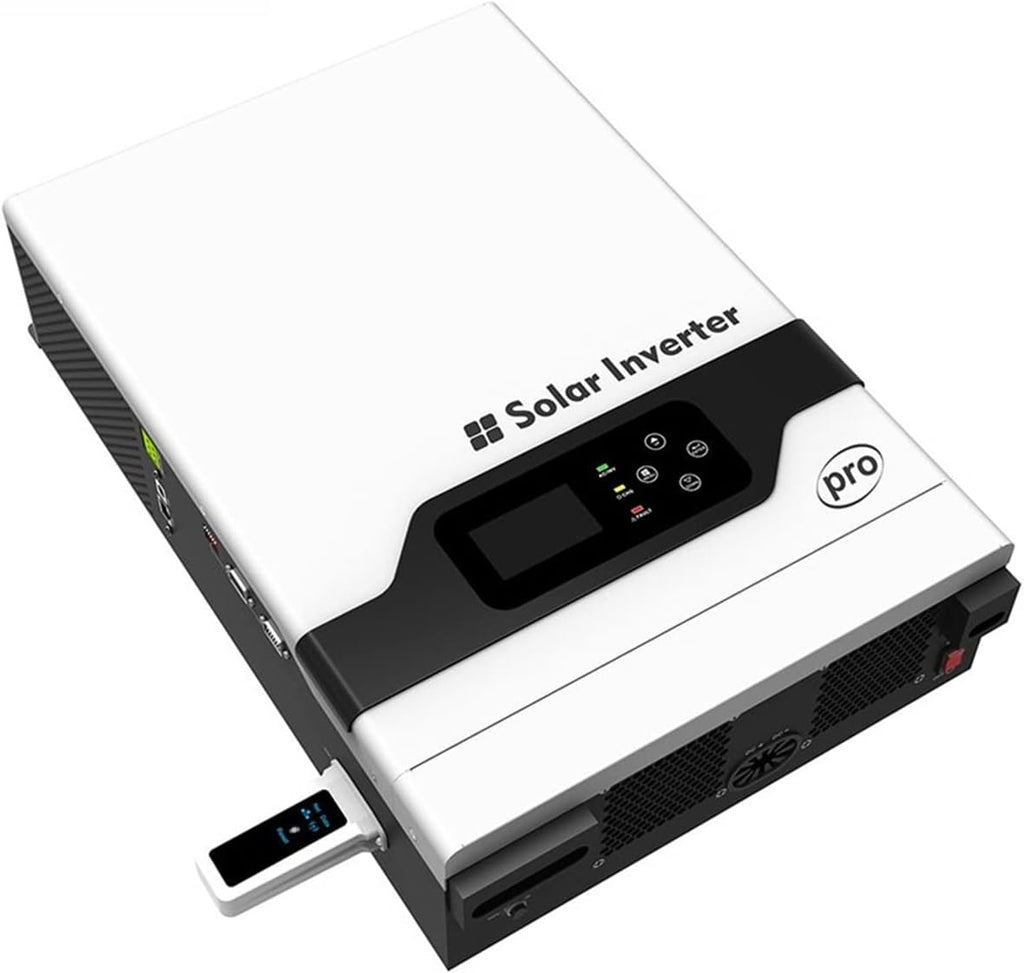

Power Inverter PV1800 PRO 3KW PV Input 450V 3000W Off Gird Hybrid Sola

Power Inverter PV1800 PRO 3KW PV Input 450V 3000W Off Gird Hybrid Solar Inverter MPPT 80A Charge Controller (Color : 3KW, Size : Other_220-240V)

$579.96 $1,502.77

2023 PV1800 Pro Series On/Off Grid Hybrid Solar Inverter
PV1800PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.
Recommend Product
PV18 VPM VPK VHM series off-grid solar inverter; PV18 PLUS hybrid solar inverter
Features
*// Pure sine wave output
*// LCD setting (Working modes, Charge Current, Charge Voltage, etc)
*// Build-in MPPT 80A solar charge controller, 60A AC charge controller
*// Max PV Array Open Circuit Voltage 450V
*// Can provide the power to the load wothout battery

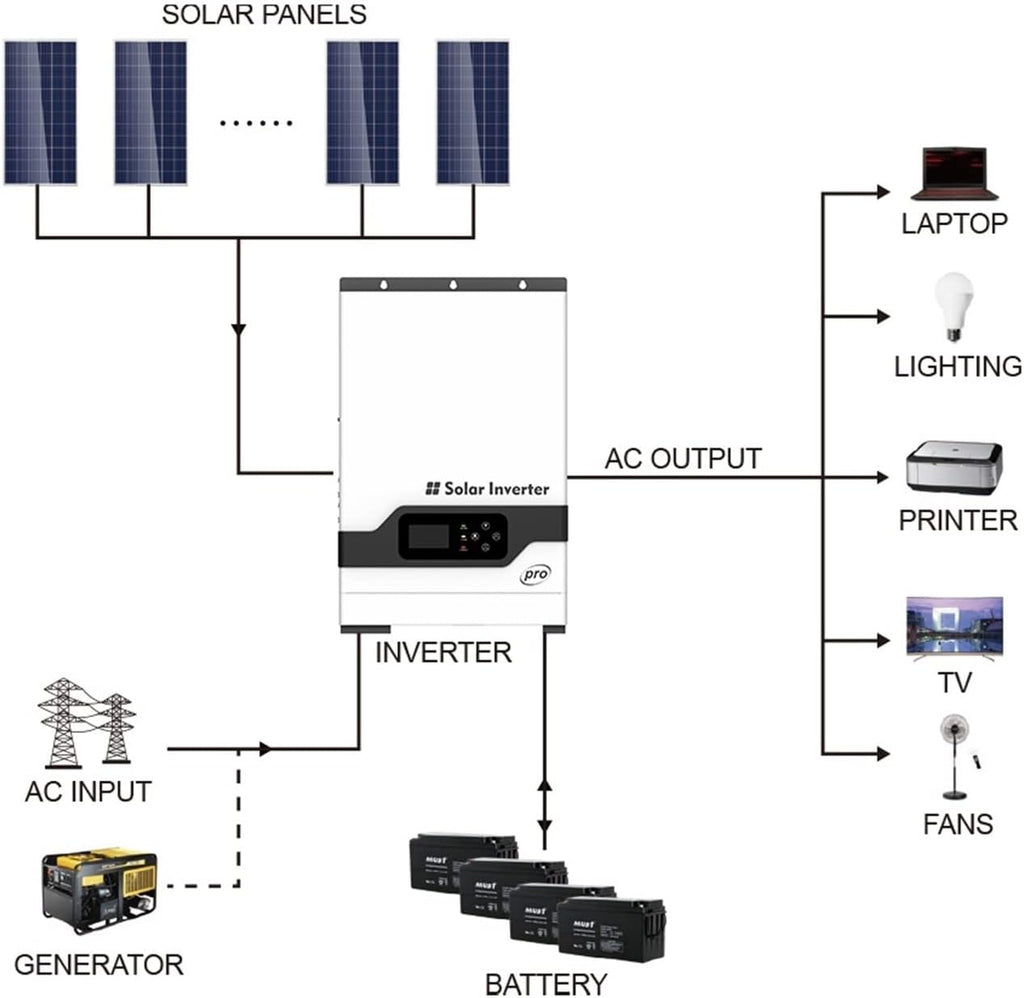

*// Combining solar system, AC utility, and battery power source to supply continuous power
*// Overload, short circuit and Deep discharge protection
*// Cold start function

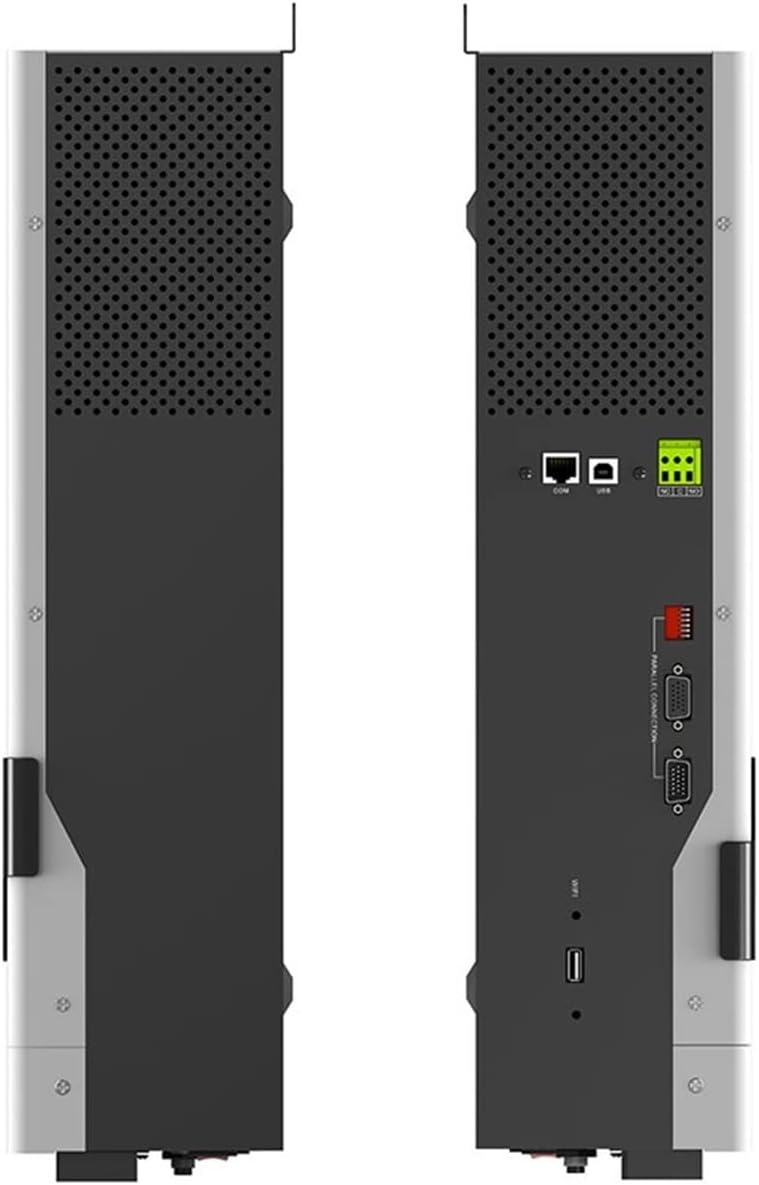

*// Support USB, RS485 function
*// Compatible to generator
Product parameters
MODEL
PV18-3024 PRO
Nominal Battery System Voltage
24VDC
INVERTER OUTPUT
Rated Power
3000VA/3000W
Surge Power
6000W
Waveform
Pure sine wave
AC Voltage Regulation (Batt.Mode)
230VAC±5%(Setting)
Inverter Efficiency (Peak)
93%
Transfer Time
10ms(For Personal Computers)20ms(For Home Appliance)
AC INPUT
Voltage
230VAC±5%
Selectable Voltage Range
170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range
50Hz/60Hz (Auto sensing)
BATTERY
Normal voltage
24VDC
Floating Charge Voltage
27.4VDC
Overcharge Protection
30VDC
SOLAR CHARGER&AC CHARGER
Maximum PV Array Open Circuit Voltage
450VDC
PV Array MPPT Voltage
150430 VDC
Maximum PV Array Power
3000W
Maximum Solar Charge Current
80A
Maximum AC Charge Current
60
