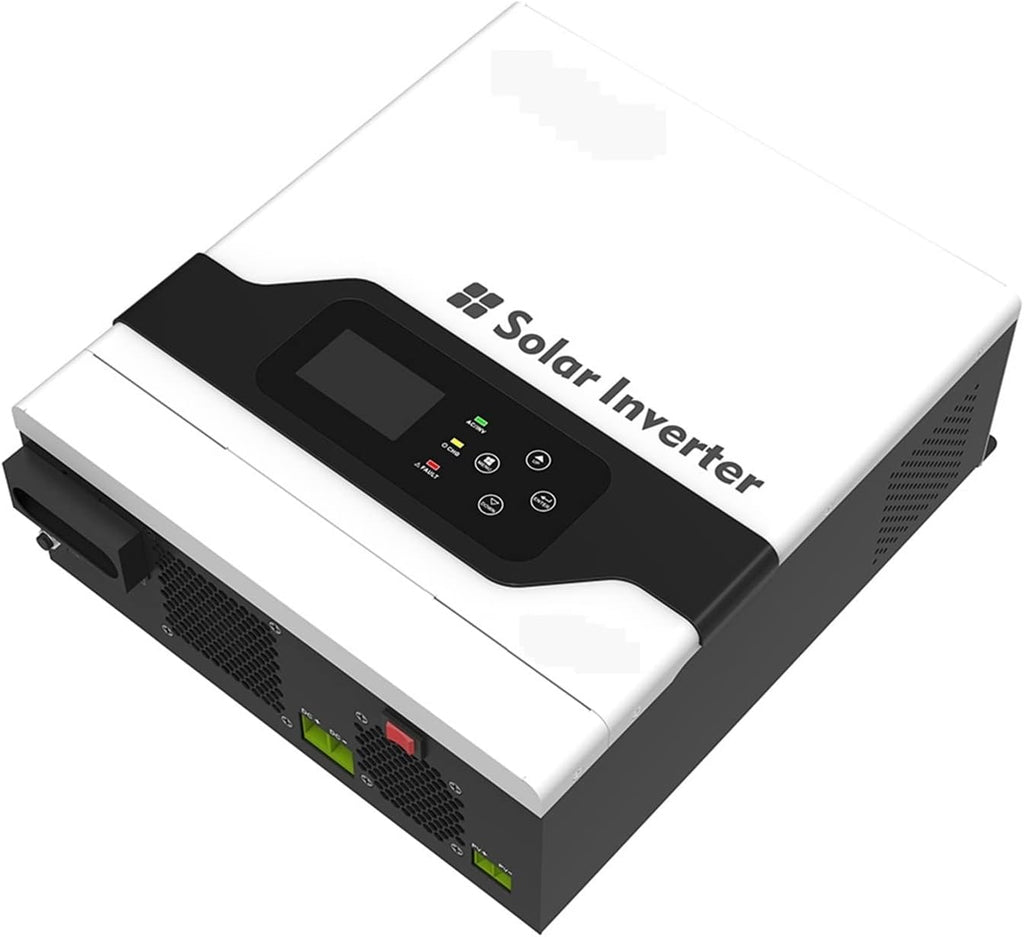

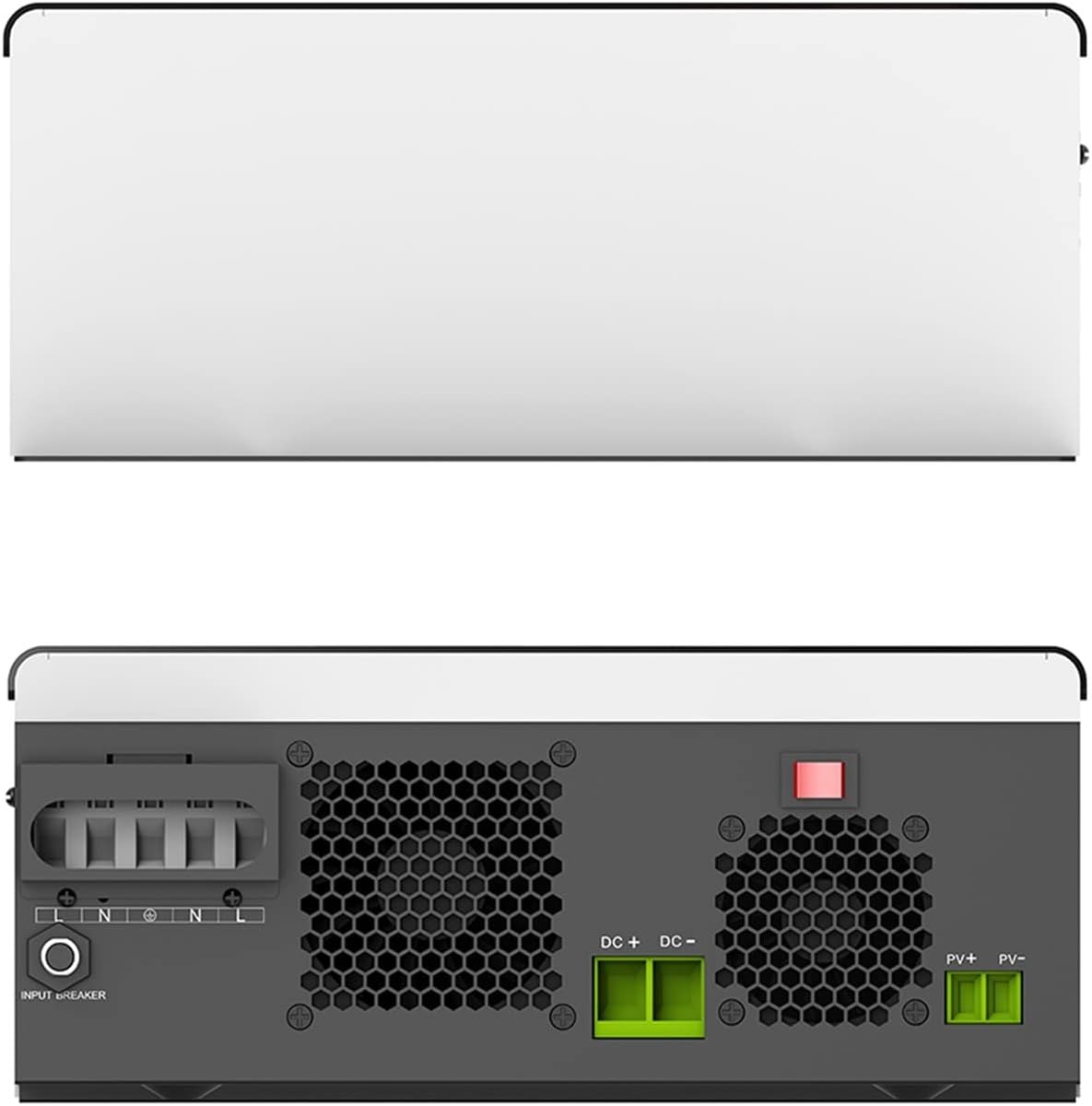

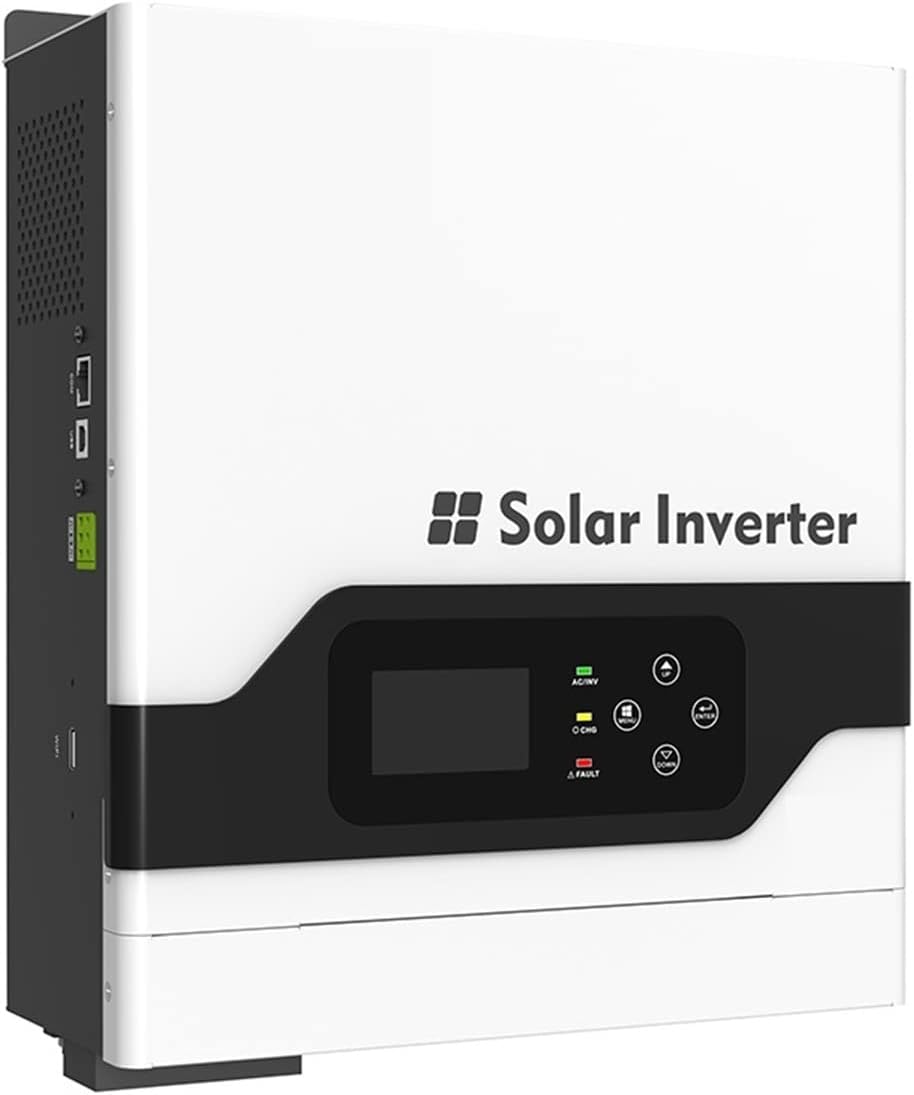

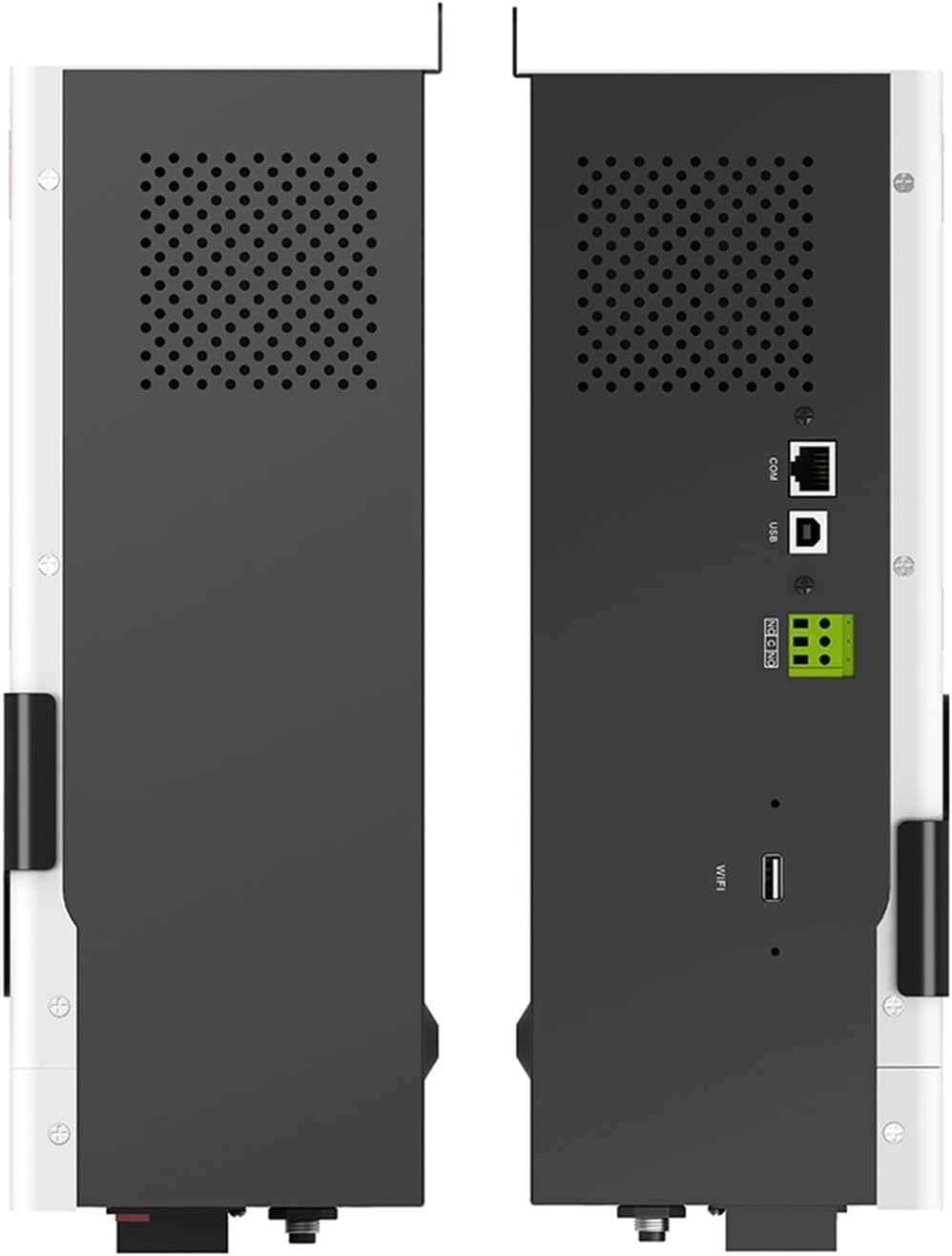

Power Inverter PV1800 3KW 3000W Hybrid Off Grid Solar Inverter 24V 80A

Power Inverter PV1800 3KW 3000W Hybrid Off Grid Solar Inverter 24V 80A Charger with High Frequency (Color : 3KW with A, Size : 24V_220-240V)

$412.12 $1,120.18

PV1800 is a multi-function inverter/charger, combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Recommend Product
Features
Product parameters
MODEL
PV18-3024 VPK
Nominal Battery System Voltage
24VDC
INVERTER OUTPUT
Rated Power
3000W
Surge Power
6000W
Waveform
Pure Sine Wave
AC Voltage Regulation (Batt.Mode)
220VAC~240VAC(setting)
Inverter Efficiency(Peak)
93%
Transfer Time
10ms(UPS /VDE4105 ) 20ms( APL)
AC INPUT
Voltage
230VAC
Selectable Voltage Range
170~280VAC(UPS), 90~280VAC(APL), 184~253VAC(VDE4105)
Frequency Range
50Hz / 60Hz (Auto Sensing)
BATTERY
Normal Voltage
24VDC
Floating Charge Voltage
27.4VDC
Overcharge Protection
30VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage
80VDC
Standby Power Consumption
2W
Maximum Solar Charge CurrentPWM
60A
Maximum AC Charge Current
10A or 20A
Maximum Charge Current
80A
MECHANICAL SPECIFICATIONS
Machine Dimensions WHD
272355100mm
Net WeightKg
7
Package DimensionsWHD
465373231mm
Gross WeightKg
8
OTHER
Humidity
5 to 95 Relative Humidity Noncondensing
Operating Temperature
0C 55C
Storage Temperature
15C 60C
Product description

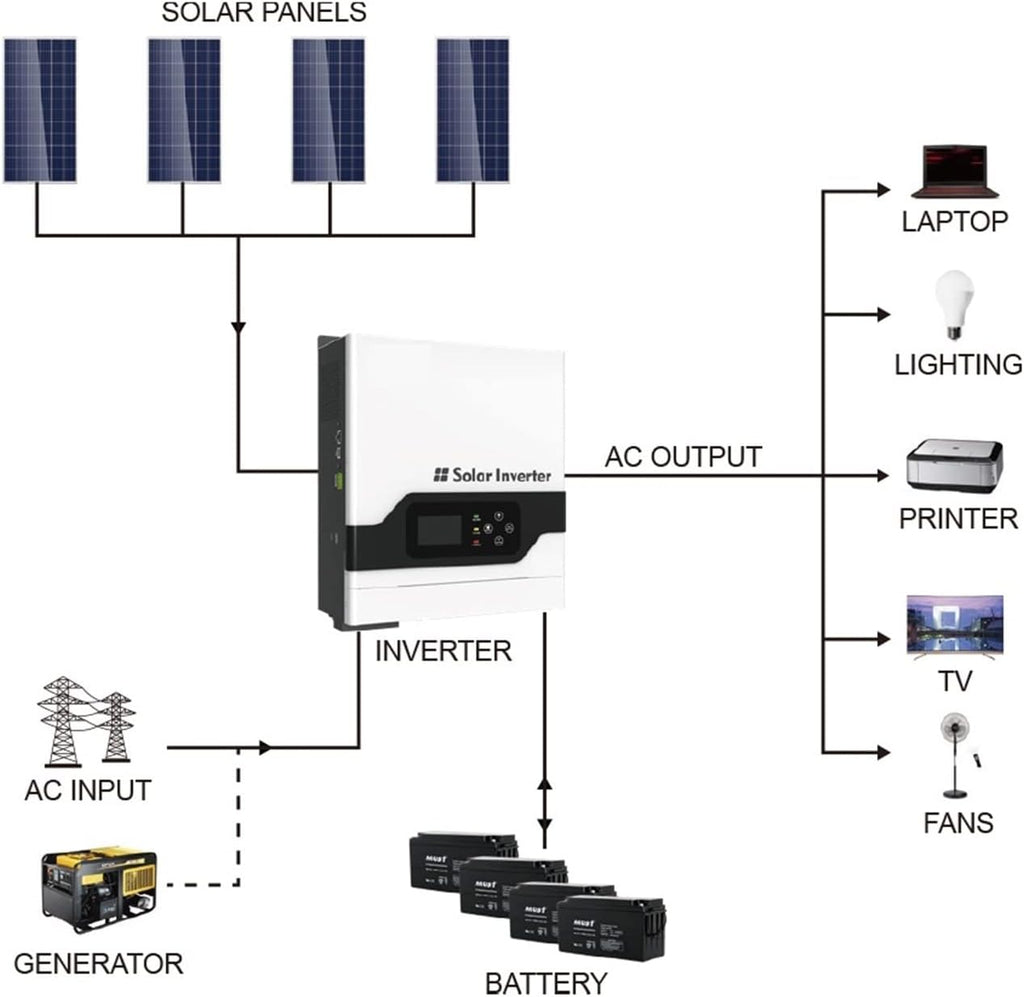

PV1800 VPK system diagram
This product can operating in many conditions because of its smart settings
5 working mode
1 AC priority mode AC utility provide power to your loads PV charging your battery
2 Charge mode AC and PV charging your battery together and AC utility provide power to your loads
3 Bypass mode AC utility provide po
