Power Inverter 24VDC 3KW 450V PH1800 PRO On Off Grid Hybrid Solar Inve

Power Inverter 24VDC 3KW 450V PH1800 PRO On Off Grid Hybrid Solar Inverter PV Input 3000W Grid Tie MPPT 80A Charge Controller (Color : 3KW, Size : 24V_220-240V)

$562.69 $1,568.53

2023 PH1800 Pro Series On/Off Grid Hybrid Solar Inverter
PV1800PRO is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. PV1800 PRO Series can run without battery. The Maximum PV array open circuit voltage can reach 450V and MPPT voltage is 150~430Vdc, which Can help customers make full use of solar energy.
Recommend Product
PV18 VPM VPK VHM series off-grid solar inverter; PV18 PLUS hybrid solar inverter
Grid tie ON-Grid Certification
IEC-EN62109
Features
*// Pure sine wave output
*// LCD setting (Working modes, Charge Current, Charge Voltage, etc)
*// Build-in MPPT 80A solar charge controller, 60A AC charge controller
*// Max PV Array Open Circuit Voltage 450V
*// Can provide the power to the load wothout battery

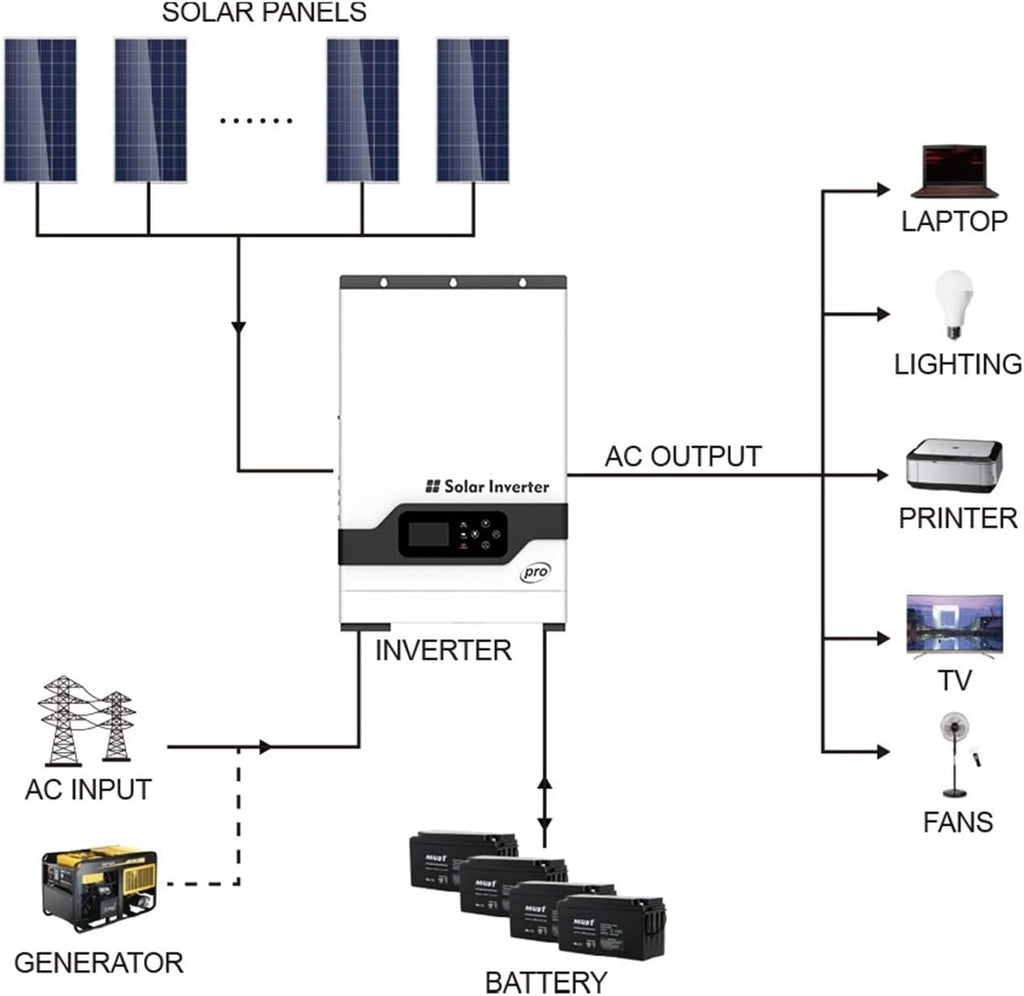

*// Combining solar system, AC utility, and battery power source to supply continuous power
*// Overload, short circuit and Deep discharge protection
*// Cold start function
*// Feed back energy to the grid
Product parameters
MODEL
PH18-3024 PRO
Nominal Battery System Voltage
24VDC
INVERTER OUTPUT
Rated Power
3000VA/3000W
Surge Power
6000W
Waveform
Pure sine wave
AC Voltage Regulation (Batt.Mode)
230VAC±5%(Setting)
Inverter Efficiency (Peak)
93%
Transfer Time
10ms(For Personal Computers)20ms(For Home Appliance)
AC INPUT
Voltage
230VAC±5%
Selectable Voltage Range
170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range
50Hz/60Hz (Auto sensing)
BATTERY
Normal voltage
24VDC
Floating Charge Voltage
27.4VDC
Overcharge Protection
30VDC
SOLAR CHARGER&AC CHARGER
Maximum PV Array Open Circuit Voltage
450VDC
PV Array MPPT Voltage
150430 VDC
Maximum PV Current
18A
Maximum PV ArrayPower
3000W
Maximum Solar Charge Cu
