3000W 48V Wind Solar Hybrid Kit: 20pcs 100W Poly Solar Panel + 1000W W

3000W 48V Wind Solar Hybrid Kit: 20pcs 100W Poly Solar Panel + 1000W Wind Turbine Generator + 40A MPPT Charge Controller + Cables + Z Mount Brackets

$1,078.29 $2,795.00

NOTES: We will ship with appropriate specification based on different countries as below: USA: 110V / EU: 220V / AU: 240V

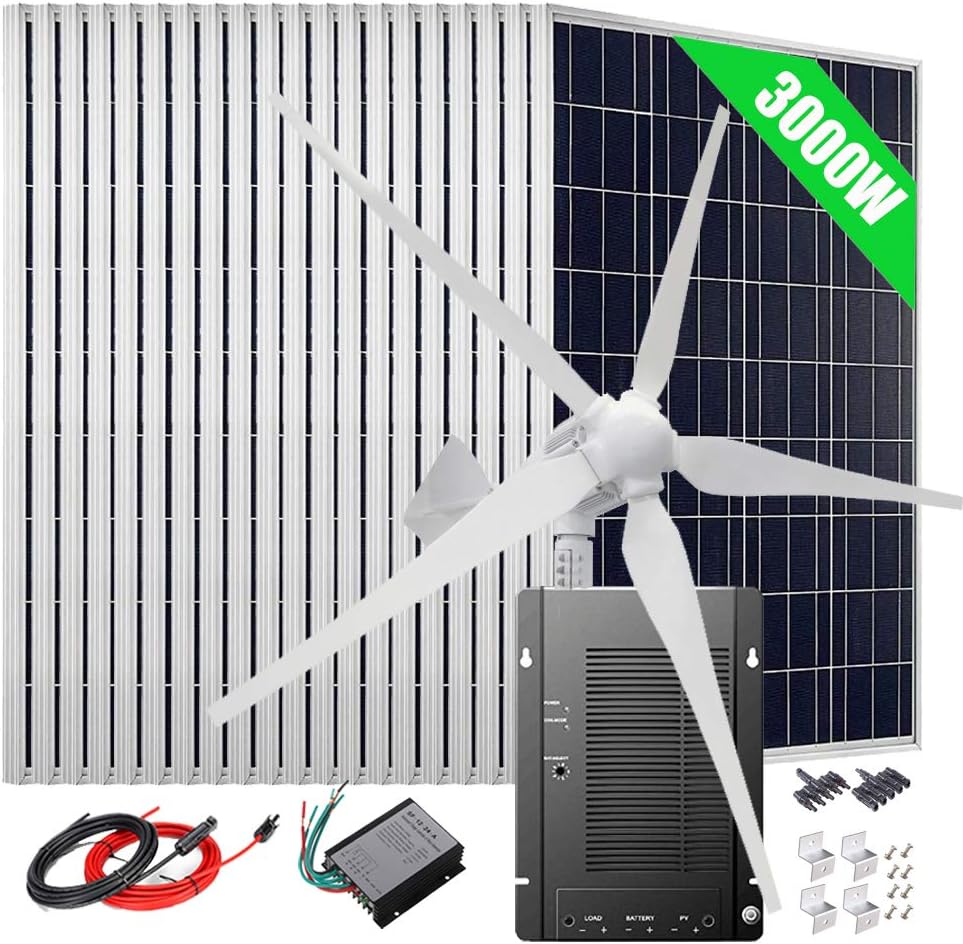

The Giosolar 3000W Solar Wind kit includes:

- 20x 100W Polycrystalline solar panels with 90mm of special solar cable and waterproof connectors
- 1x 1000W 48V Wind Turbine Generator with 5 blades

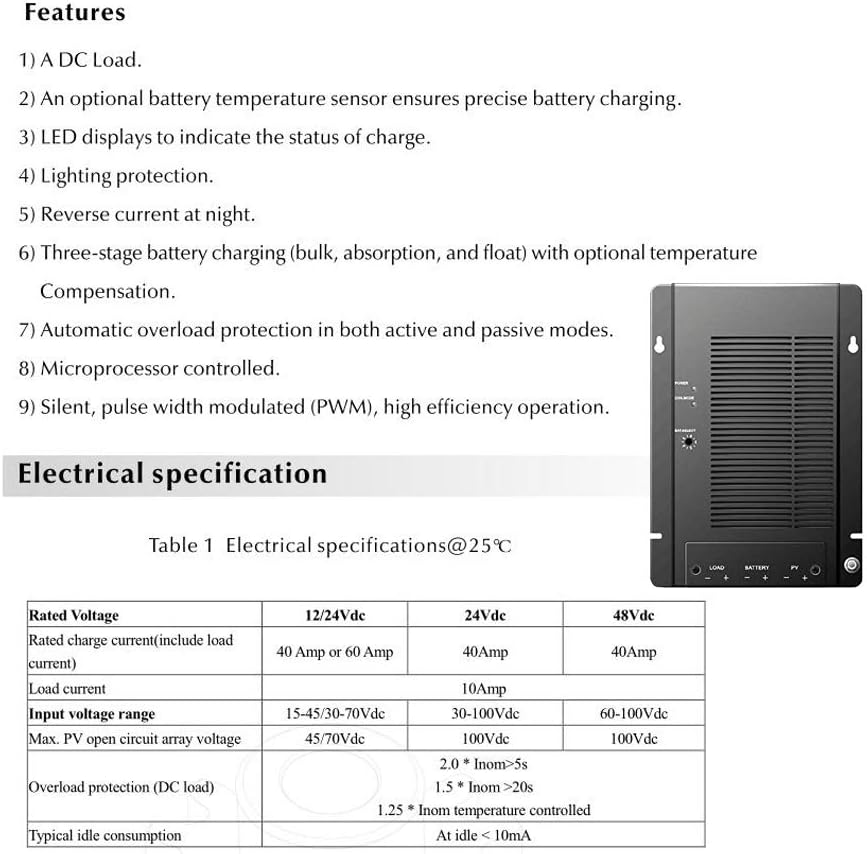

- 1x 48V 40A MPPT Solar Charge Controller
- 1x Wind Charge Controller
- 1x 5M solar cable with connectors ( Red about 2.5M, Black about 2.5M)
- 20 Set of Z mounting brackets
- 1x Branch Connectors

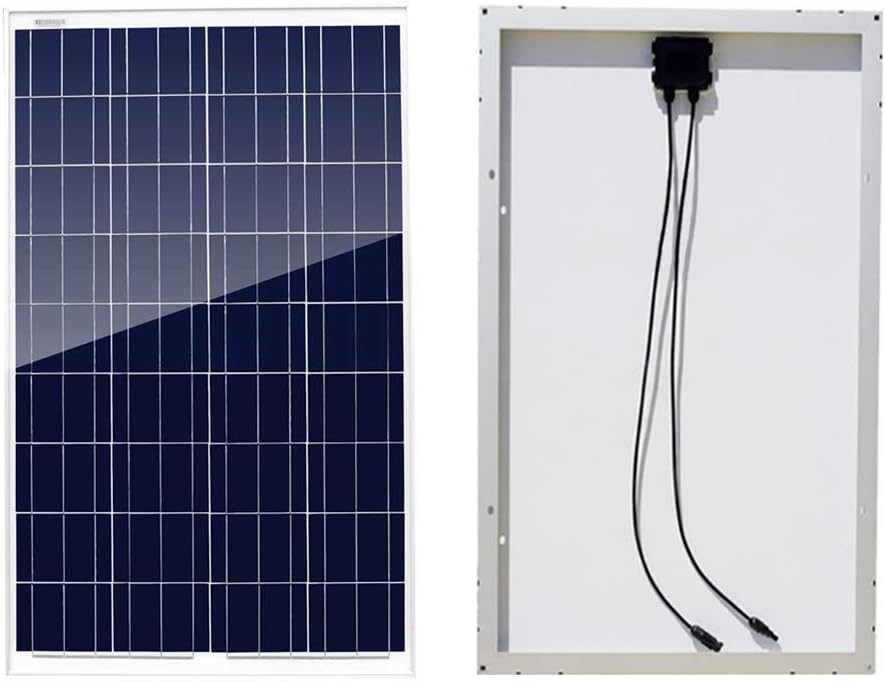

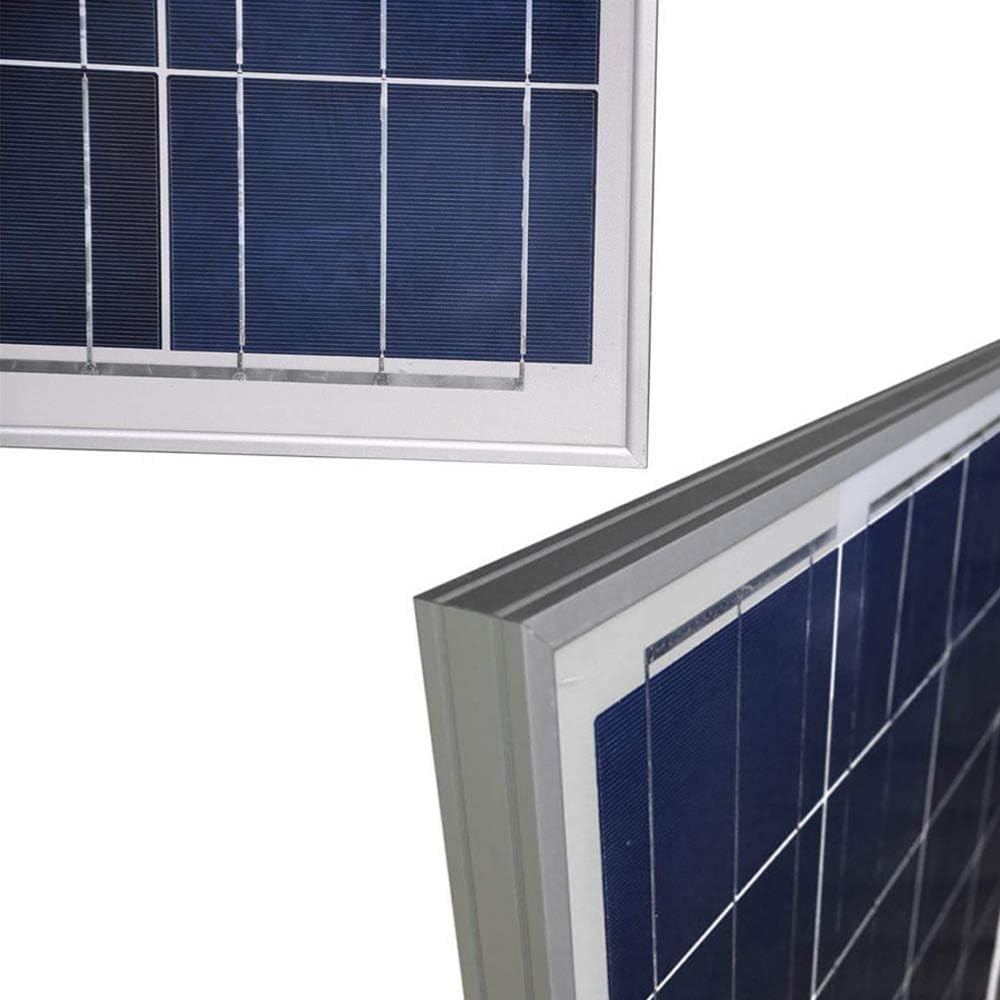

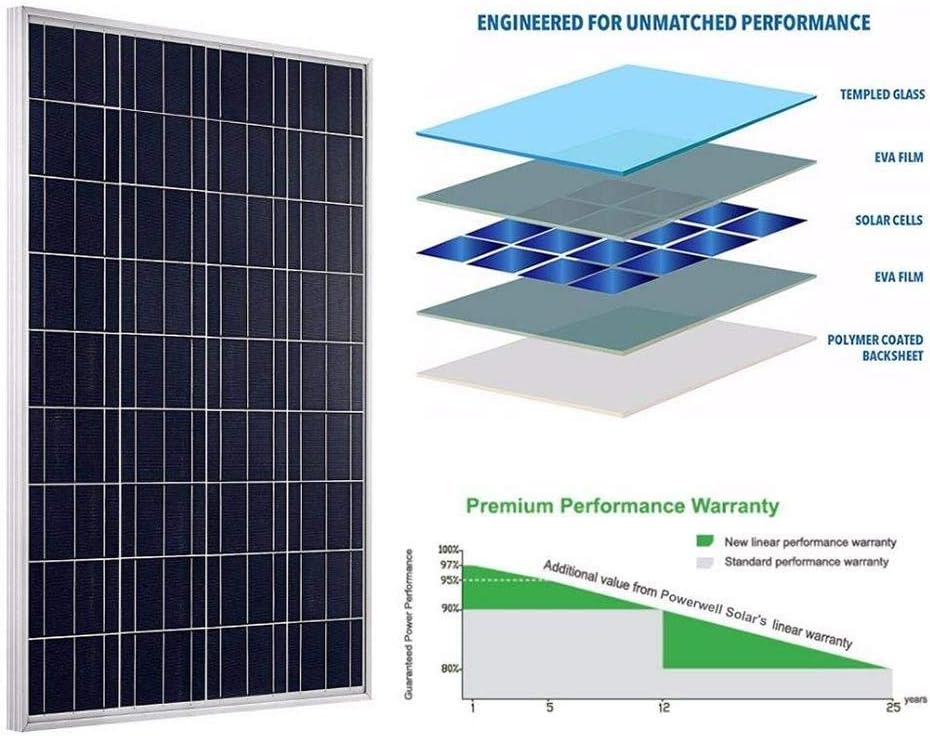

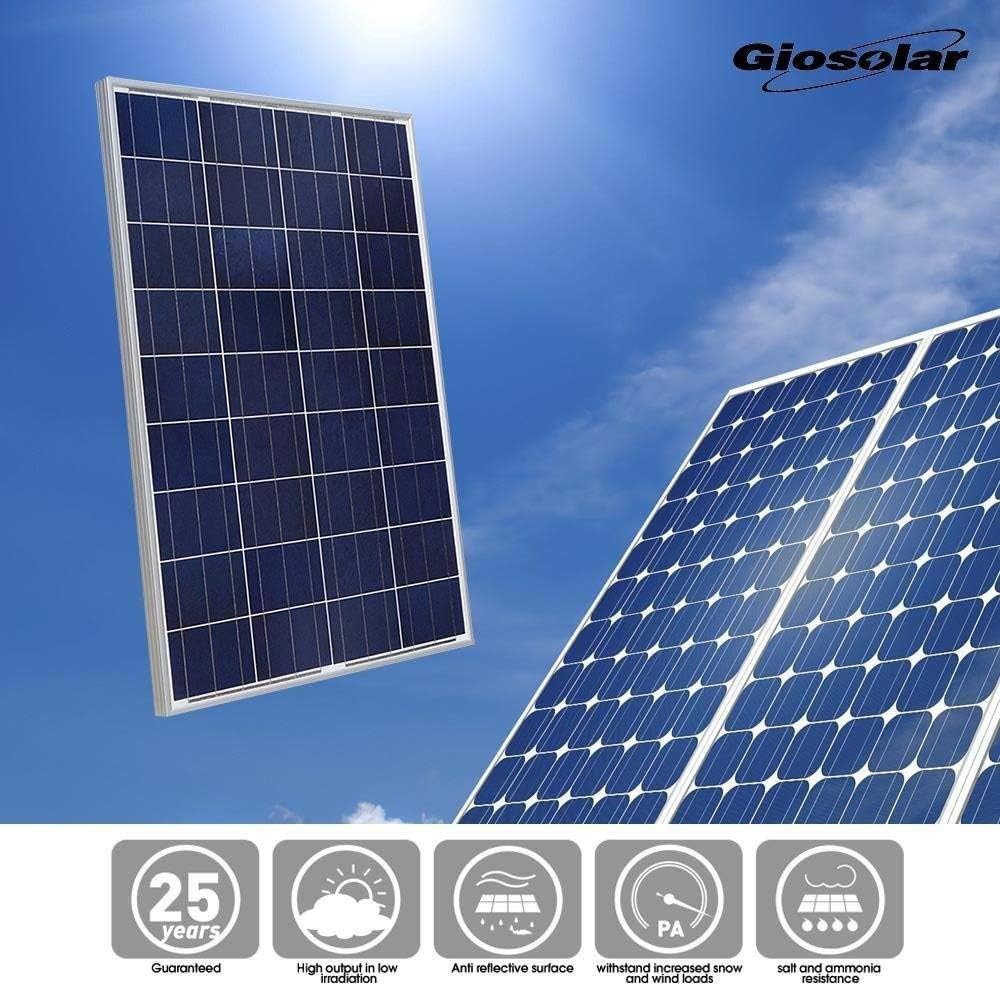

100W Poly Solar Panel Specifications:

-Maximum Power: 100W
-Optimum Operating Voltage (Vmp): 18 V
-Open-Circuit Voltage (Voc): 21.6 V
-Optimum Operating Current (Imp): 5.55 A
-Short-Circuit Current (Isc): 6.11A
-Dimensions: 1025*670*30mm / 40.35 X 26.42 X1.18 In
-Weight: 16.53 lbs (7.5KG)
- 90mm of special cable with male & female connectors attached

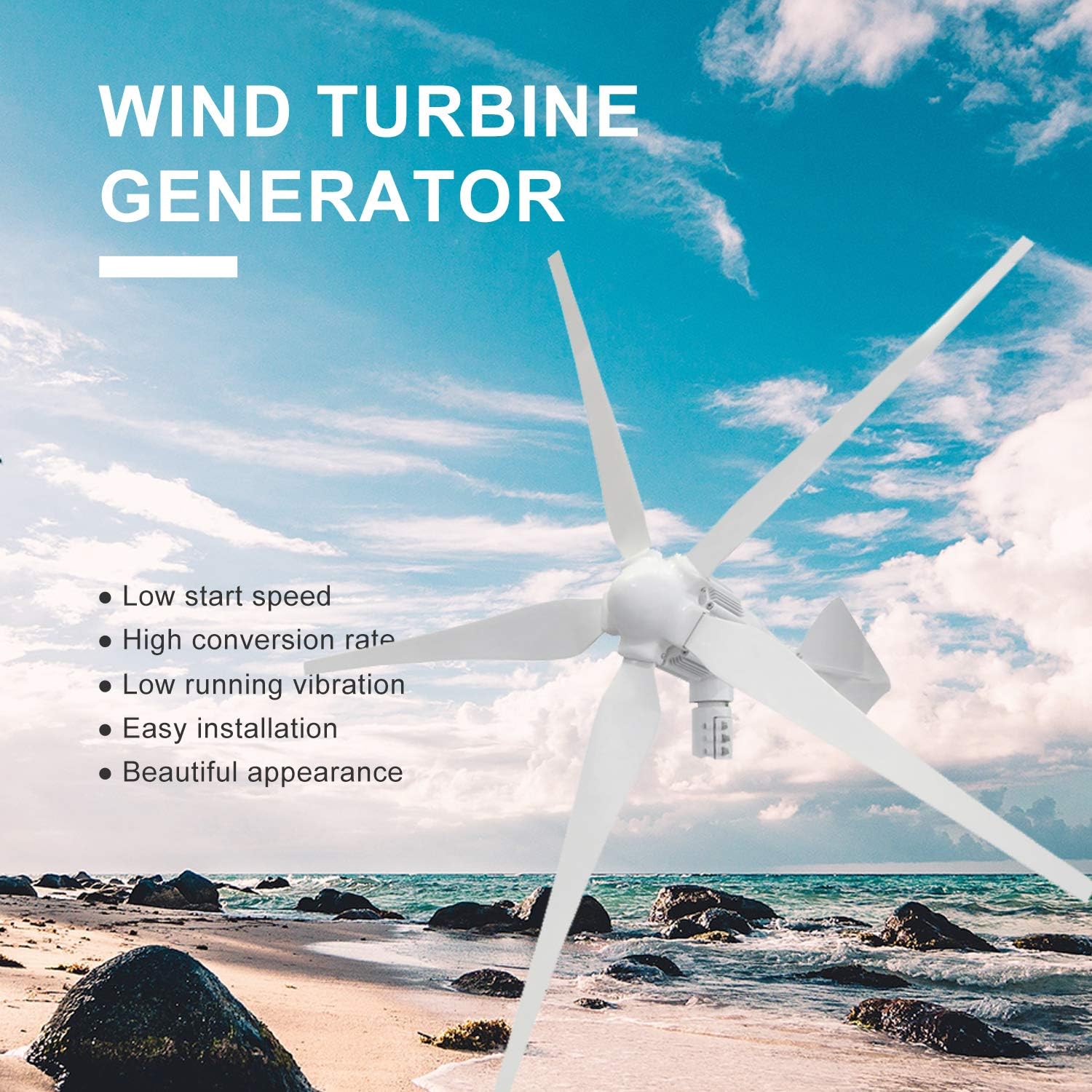

1000W 48V Wind Turbine Specification:

-Rated power：1000W
-Rated DC voltage：DC 48V
-Rated current：41A/21A
-Rated speed：650r/m
-Max power：1200W
-Number of blade: 5 pcs
-Starting wind speed：3m/s/2.5 m/s
-Cut-in wind speed：3.5m/s /3 m/s
-Cut-out wind speed：15m/s
-Security wind speed：40m/s
-Rated wind speed：12m/s
-Engine：Three-phase permanent magnel generator
-Rotor diameter: 2200mm
-Blade material: FRP (fiber glass- reinforced plastics)
-Output line anti-winding device: Over all three-phase commutator
-Over-speed wind protection: Tip stall protection + tumed protection + electomagnetic brake
-Equipment surface protection: Aluminum oxide + plastic coating
-Working temperature：-45°C-70°C
-N.W：31KG
-Packing material: Wooden case and foam material
