2920W Wind Solar Kit Off Grid System 48V Battery Charger :16x 120W Mono Solar Panel + 1000W Wind Turbine Generator + 40A MPPT Charge Controller + 3000W Inverter Peak 6000W

$1,523.77 $3,999.99

NOTES: We will ship with standard specification based on different countries as : USA: 110V / EU: 220V / AU: 240V

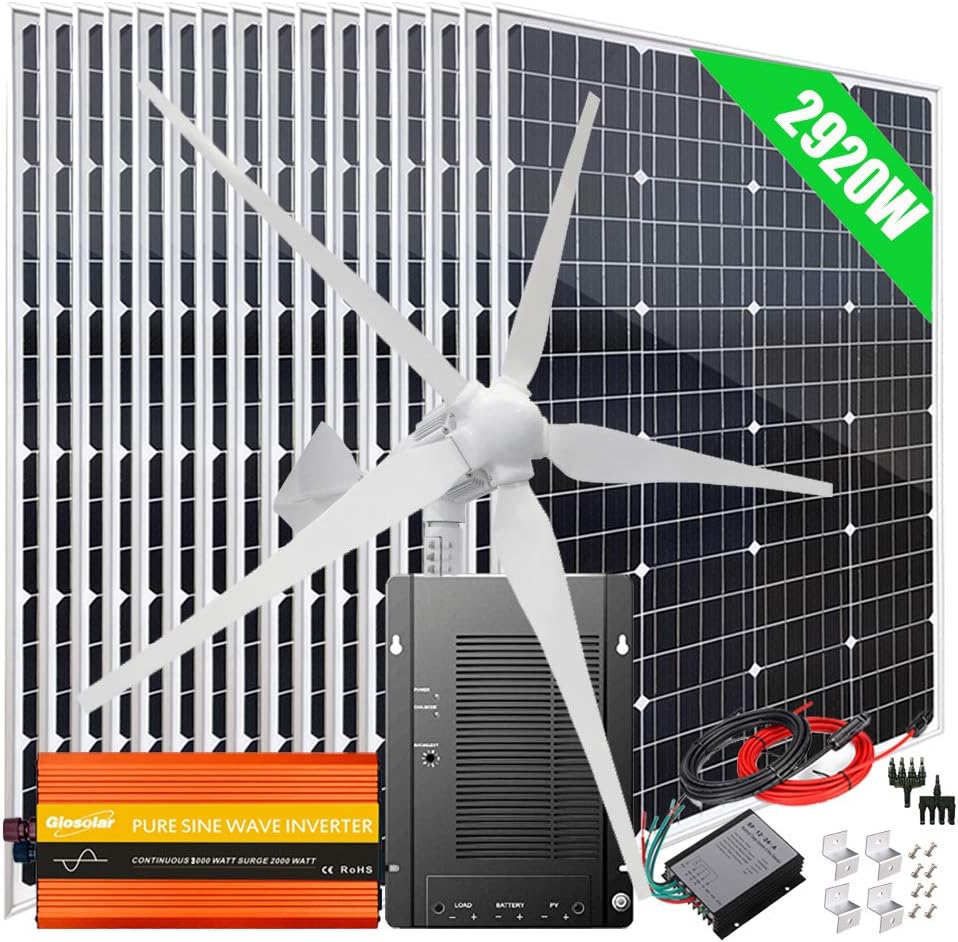

The Giosolar 2920W Solar Wind kit includes:

- 16x 120W Monocrystalline solar panels with 90mm of special solar cable and waterproof connectors
- 1x 1000W 48V Wind Turbine Generator with 5 blades
- 1x 48V 40A MPPT Solar Charge Controller
- 1x Wind Charge Controller
- 1x 3000W Peak 6000W Pure Sine Wave Power Inverter
- 1x 5M solar cable with connectors ( Red about 2.5M, Black about 2.5M)
- 16 Set of Z mounting brackets
- 1x Branch Connectors
- 2x 51.2.v 2560wh Life PO4 Lithium Iron Phosphate Battery
- 2x Battery cable Pair[2x (Red 2.5M + Black 2.5M)]

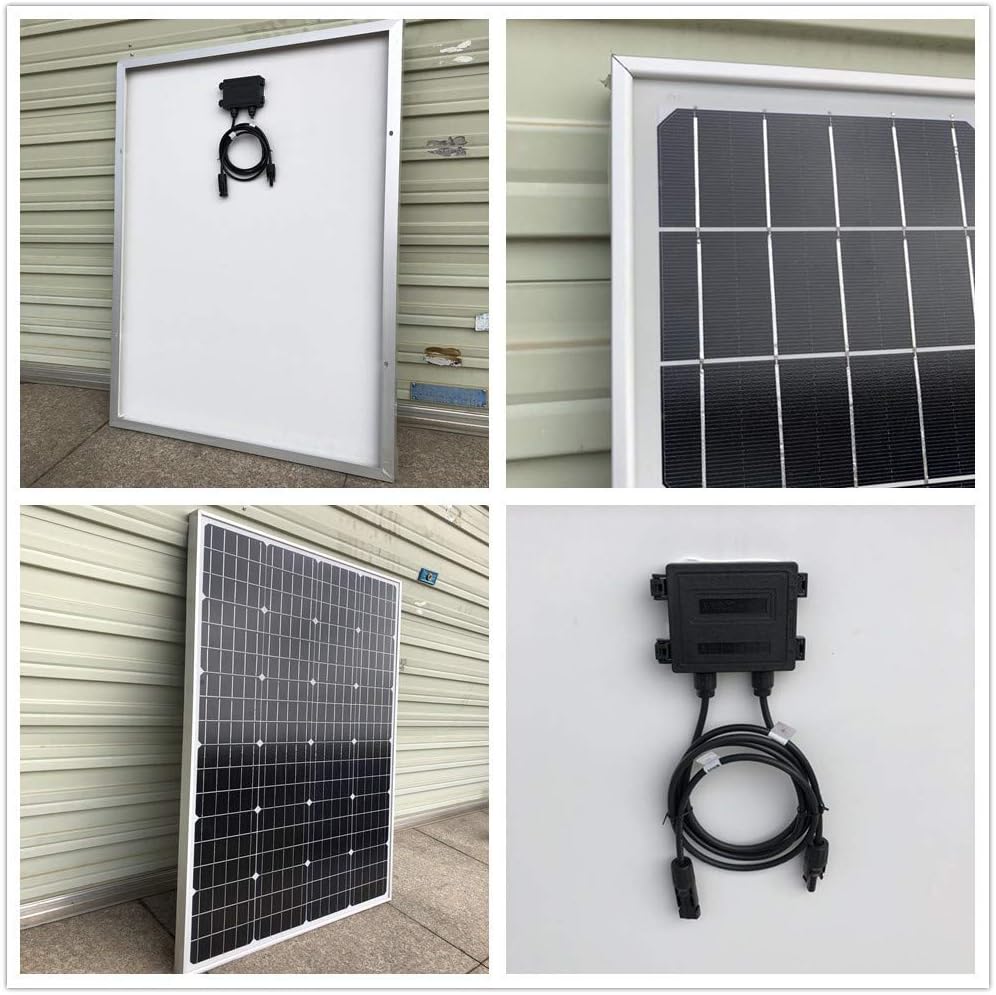

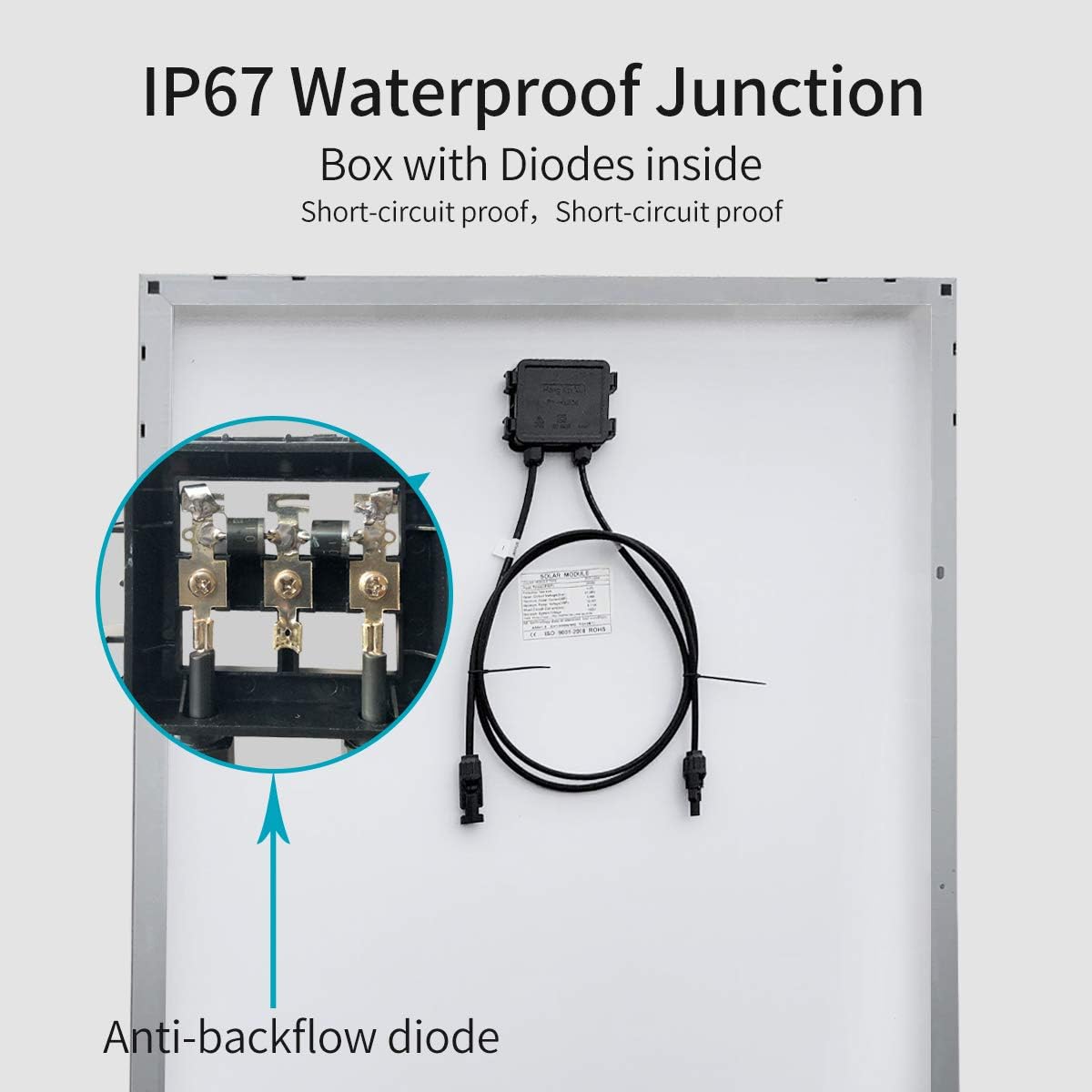

120W Mono Solar Panel Specifications:

- Maximum Power: 120W
- Optimum Operating Voltage(Vmp): 18V
- Open Circuit Voltage(Voc): 21.2V
- Optimum Operating Current (Imp):6.67A
- Short-Circuit Current (Isc): 7.23A

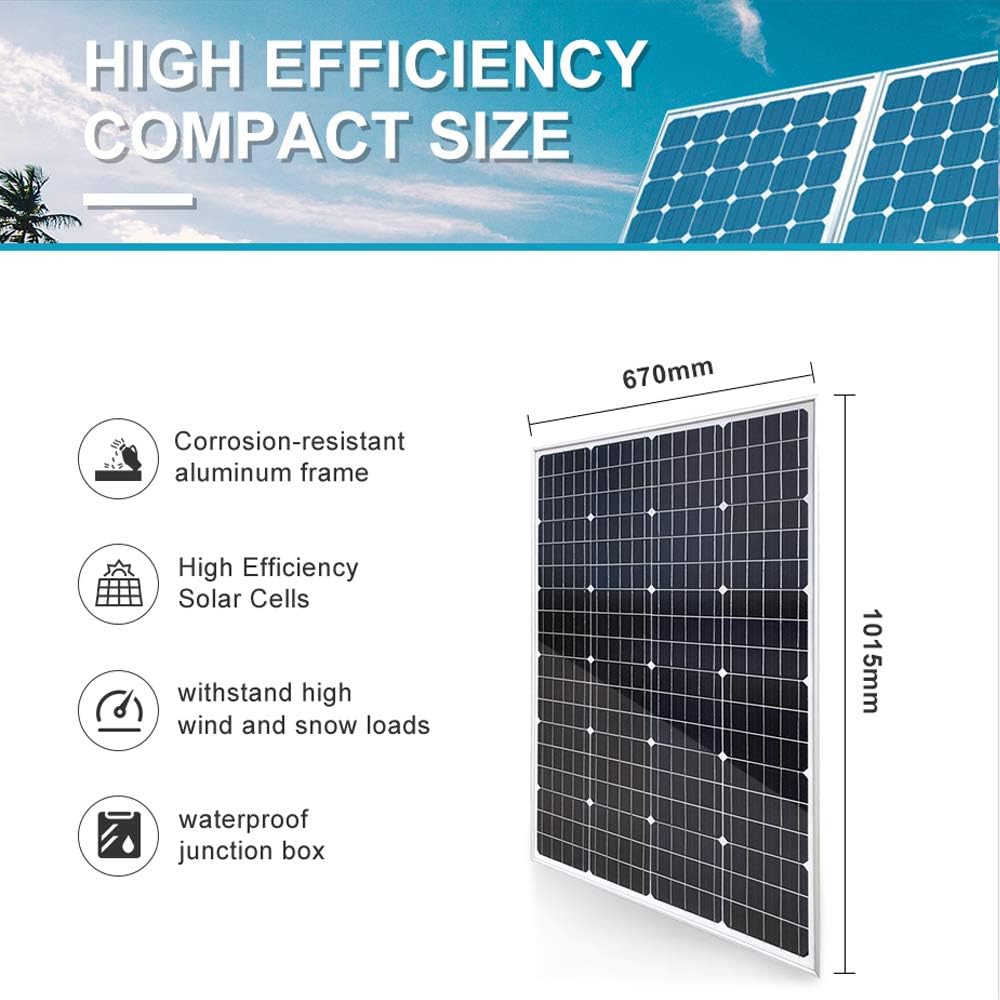

- Dimensions: 1015*670*30mm/19.96*26.38*1.18inch
- Weight: 15.5 lbs(7KG)

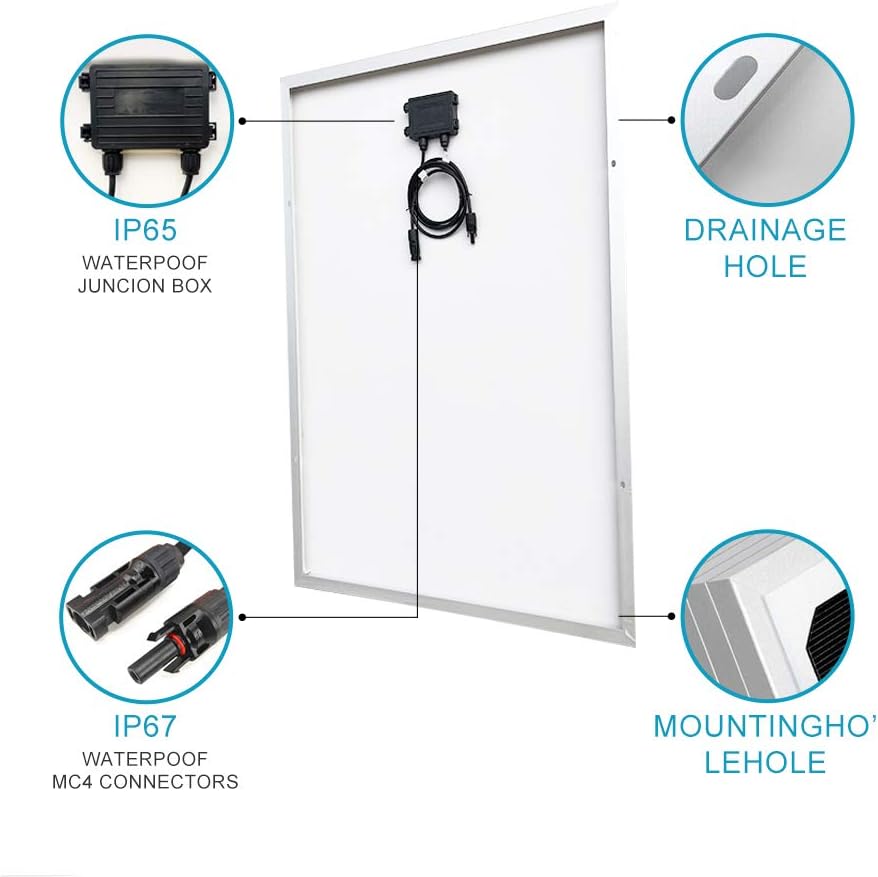

- 90mm of special cable with male & female connectors attached

1000W 48V Wind Turbine Specification:

-Rated power：1000W
-Rated DC voltage：DC 48V
-Rated current：41A/21A
-Rated speed：650r/m
-Max power：1200W
-Number of blade: 5 pcs
-Starting wind speed：3m/s/2.5 m/s
-Cut-in wind speed：3.5m/s /3 m/s
-Cut-out wind speed：15m/s
-Security wind speed：40m/s
-Rated wind speed：12m/s
-Engine：Three-phase permanent magnel generator
-Rotor diameter: 2200mm
-Blade material: FRP (fiber glass- reinforced plastics)
-Output line anti-winding device: Over all three-phase commutator
-Over-speed wind protection: Tip stall protection + tumed protection + electomagnetic brake
-Equipment surface protection: Aluminum oxide + plastic coating
-Working temperature：-45°C-70°C
-N.W：31KG
-Packing material: Wooden case and foam material
